Kork Front Horn
Bildname
.
.
.

.
Bildname

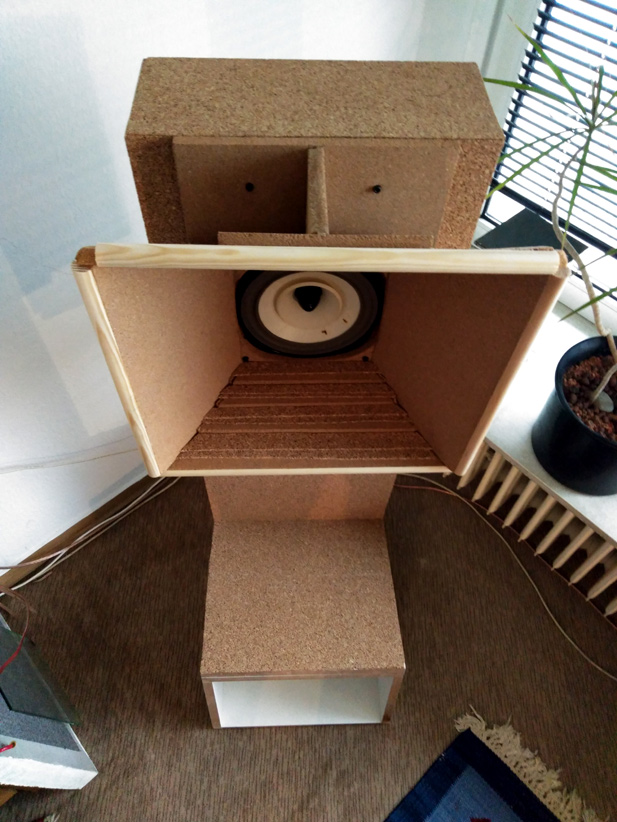

Preiswertes Front Horn für 20 cm Breitbänder
aus 15 mm Pinnwand Presskork, da es eher
krümmelt als staubt ist es im Wohnraum herstellbar.

Auch universell ohne BL-Horn ab ~250 Hz einsetzbar,
um ggf. auf Frequenzweichen Teile zur Absenkung
des HT eines Breitbänders zu verzichten,
bei dem Preis sicher ein Test wert.

Inexpensive front horn for 20 cm full range drivers
Made from 15mm pinboard pressed cork as it tends to
crumbling as dust it can be produced in the living room.

Can also be used universally without a BL horn from
~250 Hz, if necessary, without crossover parts for
lowering the HT of a broadband,
definitely worth a try for the price.
Bildname

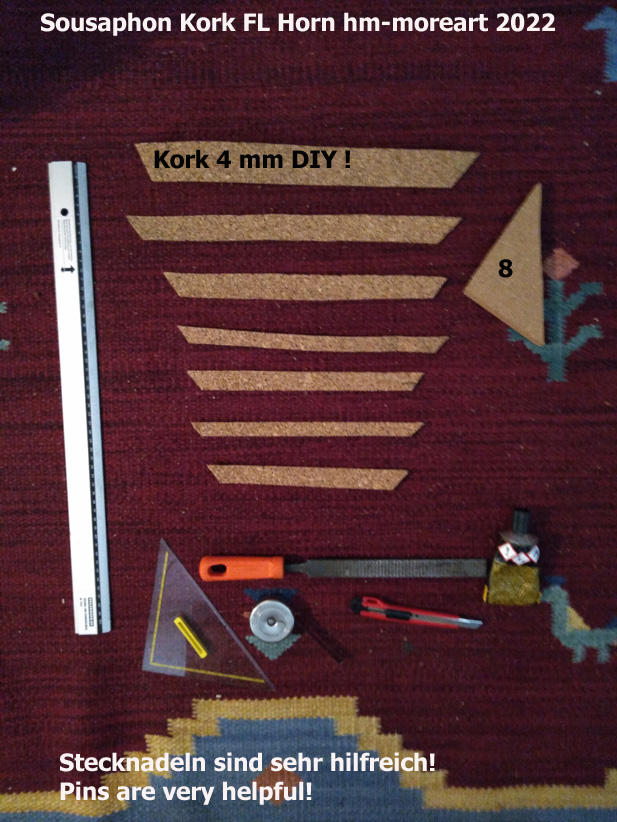

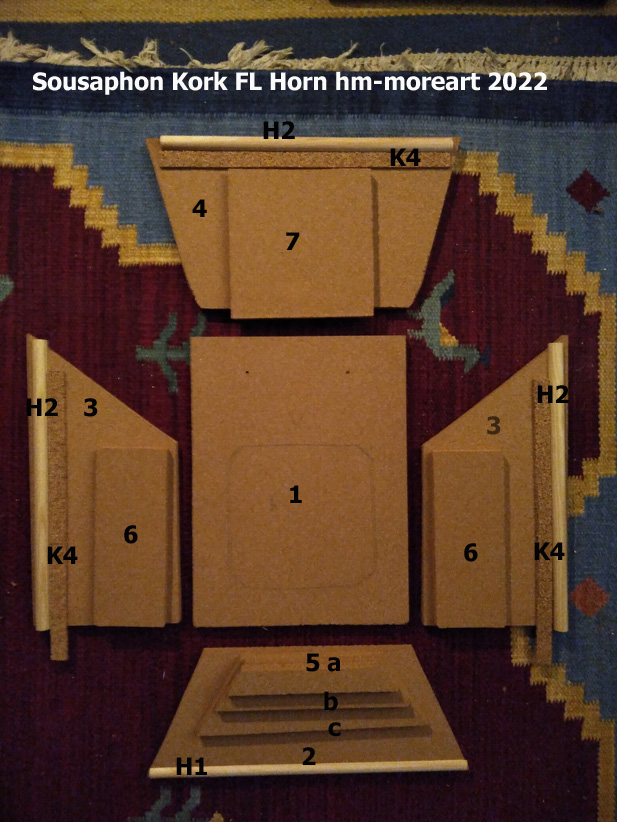

15 mm Pinnwand Kork, 4 mm Rollen Kork, Stecknadeln,
Halbrund Stab 15 mm + 20 mm, Holzraspel grob+fein,
Metall Lineal etc.
Kontakt Kleber:
beide Seiten nicht zu dünn, warten, zusammenpressen
und mit Stecknadeln fixieren.
Kleines Cuttermesser:
um 15 mm Kork zu schneiden
braucht es bis zu 8 langsame schnitte.


15 mm cork bulletin board, 4 mm cork rolls, pins,
Half-round rod 15 mm + 20 mm, Wood rasp coarse+fine,
metal ruler etc.
Contact Glue:
both sides not too thin, wait, press together
and fix with pins.
Small cutter knife:
to cut 15 mm cork it takes up to 8 slow cuts.
Bildname
Bildname
BildnameBildname

Für den ewigen Klangsucher wäre es möglich den MT Klang durch partielles
bekleben mit Folie, erst nur oben dann rechts/links, zu beeinflussen.
Hat man die richtigen Stellen gefunden, die Folie entfernen und den
Bereich mit Klarlack lackieren.

For the eternal sound seeker it would be possible to partially explore
the MT sound cover with foil to influence,
first only at the top then right/left.
Once you have found the right spots, remove the foil and
Paint the area with clear coat.
Bildname
Bildname
Bildname
